CGTX 1001 series

CGTX's 1000 series consisted of a mixture of 10,000 and 12,000 gallon tank cars, and were a mixture of new and used cars acquired from 1932 to 1952.

The first series arrived in 3/1932 lettered for the Canadian Tank Car Co. with CATX reporting marks. By 5/1932 the company name had been changed, although cars with CATX reporting marks continued to be listed through the 7/1933 ORER (by 7/1934 the CATX reporting mark was gone). Two additional series arrived from CC&F: 1026-1050 in 8/1932 (although ORERs would not report these cars until 7/1934), and 1051-1100 in 9/1942, for a total of 100 cars. It also appears that cars 1111-1160 were also constructed new in 1942, which would bring the total to 150 cars.

In 1942, used cars began to be acquired as part of this group with the arrival of 1101-1110. This particular series had a short life on CGTX, disappearing from the roster during 1947-48.

CGTX 1001-1025

Series

Quantity

Builder

Lot

Built

In Service

Type

AAR

Tons

Gallons

Imp. Gal.

Litres

1001-1025

25

CCF

945

1/1932

3/1932-4/1985

ICC-103

TM

50

10000

8450



Cars were originally marked with CATX reporting marks, and were changed to CGTX by 7/1934.

CATX 1001

—CC&F builder's photo

Original CATX reporting marks .

CGTX 1026-1050

Series

Quantity

Builder

Lot

Built

In Service

Type

AAR

Tons

Gallons

Imp. Gal.

Litres

1026-1050

25

CCF

952

8/1932

7/1934-7/1984

ICC-103

TM

50

10000

8450



CGTX 1043

—CC&F builder's photo

By mid-1932 the reporting marks and lettering had been adjusted to reflect the new corporate name.

CGTX 1050

—T.A. Watson photo, Ian Cranstone collection

In this 1950s view, it can be seen that the CGTX lettering scheme has been simplified on CGTX 1050.

CGTX 1051-1100

Series

Quantity

Builder

Lot

Built

In Service

Type

AAR

Tons

Gallons

Imp. Gal.

Litres

1051-1100

50

CCF



9/1942

1/1943-7/1984

ICC-103

TM

50

10000

8450



CGTX 1072

—T.A. Watson photo, Ian Cranstone collection

CGTX 1072 appears in the mid-1950s.

CGTX 1101-1110

Series

Quantity

Builder

Lot

Built

In Service

Type

AAR

Tons

Gallons

Imp. Gal.

Litres

1101-1100

10





/1926

10/1942-1/1948



TM



10000





Former ? acquired /1942, cars retired?/renumbered? /1947-/48.

CGTX 1111-1160

Series

Quantity

Builder

Lot

Built

In Service

Type

AAR

Tons

Gallons

Imp. Gal.

Litres

1111-1160

50







1/1943-7/1984

ICC-103?

TM

50?

10000





Former ? acquired /1942 (may also have been new construction in 1942).

CGTX 1112

—T.A. Watson photo, Ian Cranstone collection

CGTX 1112 in a 1950s view.

CGTX 1161-1199

Series

Quantity

Builder

Lot

Built

In Service

Type

AAR

Tons

Gallons

Imp. Gal.

Litres

1161-1199

39







4/1959-7/1984

ARA-III

TM

50

10000





Former ? acquired /1959. It is apparent from Tank Car Capacities listings and photos that this series was of slightly varied sizes and construction.

CGTX 1185

—T.A. Watson photo, Ian Cranstone collection

CGTX 1185 is an ARA-III car constructed by ACF apparently in 1920.

CGTX 1199

—T.A. Watson photo, Ian Cranstone collection

A close comparison of CGTX 1199's dome shows a smaller dome than CGTX 1185 above (277 vs 350 imp. gal.).

CGTX 1201-1206

Series

Quantity

Builder

Lot

Built

In Service

Type

AAR

Tons

Gallons

Imp. Gal.

Litres

1201-1204

4







7/1937-10/1977

ARA-III

TM

50

12000

10500



Former ? acquired /1937.

CGTX 1203

—T.A. Watson photo, Ian Cranstone collection

CGTX 1203 was constructed by GATC in 4/1927.

1205-1206

2







10/1937-10/1977

ARA-III

TM

50

12000

10500



Former ? acquired /1937.

CGTX 1225-1269

Series

Quantity

Builder

Lot

Built

In Service

Type

AAR

Tons

Gallons

Imp. Gal.

Litres

1225

1







10/1952-10/1978



TM

50

12500





Former ? acquired /1952.

1226-1234

9







1/1953-4/1985



TM

50

12500





Former ? acquired /1952.

1250-1269

20







4/1959-10/1977

ICC-103

TM

50

12500





Former ? acquired /1959.

CGTX 1258

—T.A. Watson photo, Ian Cranstone collection

CGTX 1258 was constructed by GATC and shows a 7/1956 reweigh date.

CGTX 1301-1399

Series

Quantity

Builder

Lot

Built

In Service

Type

AAR

Tons

Gallons

Imp. Gal.

Litres

1301-1399

99?







7/1947-10/1978

ARA-III

TM

50

10000





Former ? acquired /1947-/48.

CGTX 1379

—T.A. Watson photo, Ian Cranstone collection

CGTX 1379 was built 2/1921.

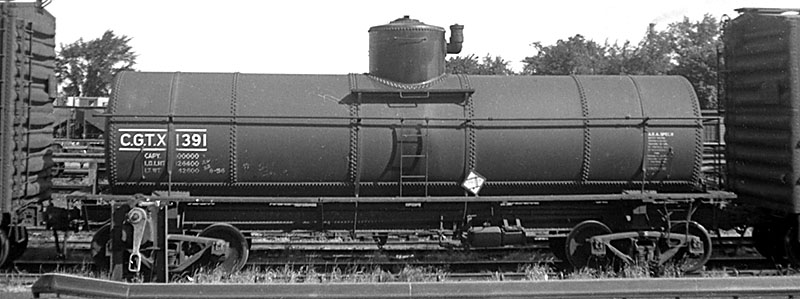

CGTX 1391

—T.A. Watson photo, Ian Cranstone collection

CGTX 1391. A comparison with CGTX 1379 above will show that these cars are of two different designs.

CGTX 1401-1499

Series

Quantity

Builder

Lot

Built

In Service

Type

AAR

Tons

Gallons

Imp. Gal.

Litres

1401-1402

2







7/1936-7/1985



TMI

50

10000





Former ? acquired /1935-/36.

1403-1404

2







10/1937-1/1982



TMI

50

10000





Former ? acquired /1937.

1405-1410

6







7/1938-1/1982



TMI

50

10000





Former ? acquired /1938.

CGTX 1410

—T.A. Watson photo, Ian Cranstone collection

CGTX 1410 was constructed by GATC apparently in 1914.

1411-1418

8







7/1941-1/1982



TMI

50

10000





Former ? acquired /1941.

1419-1450

32







10/1942-1/1982

ICC-103

TMI

50

10000





Former ? acquired /1947+.

CGTX 1430

—T.A. Watson photo, Ian Cranstone collection

CGTX was built in 9/1942 by CC&F.

1451-1452

2







10/1937-1/1982



TMI

50

10000





Rebuilt? from ? by CCF? 12/37?.

1453-1456

4







4/1938-1/1982



TMI

50

10000





Rebuilt from ? by CCF lot 1183 12/37.

CGTX 1455

—CC&F builder's photo

CGTX 1455 was rebuilt by CCF under lot 1183 in 12/1937.

1457-1459

3







4/1940-1/1982



TMI

50

10000





Rebuilt from ? by CCF lot 1359 12/39.

CGTX 1459

—CC&F builder's photo

CGTX 1459 was rebuilt by CCF under lot 1359 in 12/1939.

1460-1467

8







10/1942-1/1982



TMI

50

10000





Built?/former? /42.

1468-1499

32?







1/1947-1/1982



TMI

50

10000





Built?/former? /47+ (1480-1489 may be vacant).

CGTX 1501-1599

Series

Quantity

Builder

Lot

Built

In Service

Type

AAR

Tons

Gallons

Imp. Gal.

Litres

1501-1508

8







7/1934-1/1977



TM

50

10000





Built?/former? acquired /1933-/34.

1509-1518

8







7/1934-1/1977



TM

50

10000





Built?/former? acquired /1935-/36.

1519

1







7/1937-1/1977



TM

50

10000





Built?/former? acquired /1936-/37.

1520-1548

29







1/1939-1/1977



TM

50

10000





Built?/former? acquired /1938.

CGTX 1528

—T.A. Watson photo, Ian Cranstone collection

CGTX 1528 was reweighed in 10/1947.

1549-1558

10







7/1940-1/1977



TM

50

10000





Built?/former? acquired /1940.

1559

1







1/1941-1/1977



TM

50

10000





Built?/former? acquired /1940.

1560-1589

30







10/1942-1/1977

ARA-III

TM

50

10000





Former? acquired /1942.

CGTX 1573

—T.A. Watson photo, Ian Cranstone collection

CGTX 1573 was built in 10/1916 and reweighed in 7/1956.

1590-1599

10







1/1947-7/1984



TM

50

10000





Built?/former? acquired /1946+.

CGTX 1600-1849

Series

Quantity

Builder

Lot

Built

In Service

Type

AAR

Tons

Gallons

Imp. Gal.

Litres

1600-1799

200

CCF

1594

6-9/1943

10/1943-10/1987

ICC-103

TM

50

10000





Note: this series may have been constructed as two lots of 100 cars each under separate lot numbers.

CGTX 1635

—CC&F builder's photo

CGTX 1635.

CGTX 1653

—T.A. Watson photo, Ian Cranstone collection

CGTX 1653.

CGTX 1703

—CC&F builder's photo

CGTX 1703.

CGTX 1761

—T.A. Watson photo, Ian Cranstone collection

CGTX 1761.

1800-1849

50

CCF



6/1947

7/1947-10/1987

ICC-103

TM

50

10000





CGTX 1803

—CC&F builder's photo

CGTX 1803.

CGTX 1851-1997

Series

Quantity

Builder

Lot

Built

In Service

Type

AAR

Tons

Gallons

Imp. Gal.

Litres

1851-1863

13?







7/1947-10/1987



TM

50

10000





Former ? /1947+. Note: series is uncertain.

CGTX 1860

—T.A. Watson photo, Ian Cranstone collection

CGTX 1860 is an ARA-III reweighed in 8/1953.

1901-1914

14?







7/1947-10/1987



TM

50

10000





Former ? /1947+. Note: series is uncertain.

1941-1997

57







4/1950-10/1987



TM

50

10000





Former ? /1950. Given the variety of built dates and manufacturers, it seems likely that this was formerly a private fleet.

CGTX 1949

—T.A. Watson photo, Ian Cranstone collection

CGTX 1949 is listed as an ICC-103 despite being built by AC&F in 3/1920 (possibly rebuilt in 5/39 according to reweigh date?).

CGTX 1987

—T.A. Watson photo, Ian Cranstone collection

CGTX 1573 is an ICC-103 built by General American Transportation Corp in 1/1942 and reweighed in 2/1956.

CGTX 1996

—T.A. Watson photo, Ian Cranstone collection

CGTX 1996 is an ICC-103W built by CC&F in 5/1930.
